TFT LCD HD FPV Goggles High Resolution 48 Channesl Dual Antenna With AV IN

Shenzhen Anpo Intelligence Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap TFT LCD HD FPV Goggles High Resolution 48 Channesl Dual Antenna With AV IN from wholesalers

    Buy cheap TFT LCD HD FPV Goggles High Resolution 48 Channesl Dual Antenna With AV IN from wholesalers
    • Buy cheap TFT LCD HD FPV Goggles High Resolution 48 Channesl Dual Antenna With AV IN from wholesalers
    • Buy cheap TFT LCD HD FPV Goggles High Resolution 48 Channesl Dual Antenna With AV IN from wholesalers

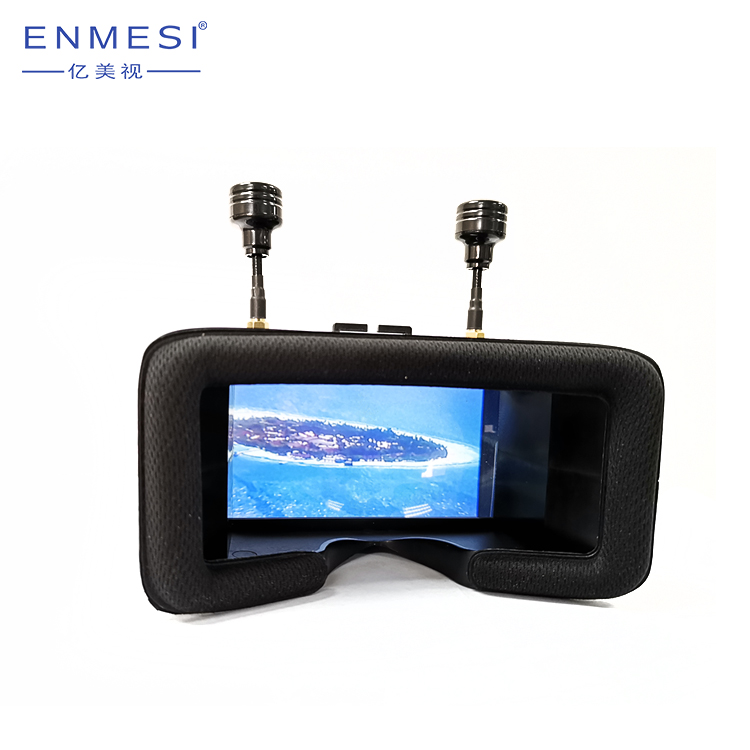

    TFT LCD HD FPV Goggles High Resolution 48 Channesl Dual Antenna With AV IN

    Ask Lasest Price
    Brand Name : ENMESI
    Model Number : F2-A43
    Certification : CE, ROHS, FCC,CCC
    Price : Negotiable
    Payment Terms : T/T, Western Union etc
    Supply Ability : 5000pcs/month
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    TFT LCD HD FPV Goggles High Resolution 48 Channesl Dual Antenna With AV IN

    5.8 G AV IN FPV Mini Goggles 4.3 Inch 0/120 FOV 480 * 272 FPV Video Glasses For Drone


    Advantge
    • 48channesl (6 bands *8 channels), support channel auto-searching.
    • compatible with almost 5.8G FPV Signal on the market.
    • Built-in antenna wear more convenient.
    • High Resolution , Show more exquisite.
    • Two mode choice: Head-mounted /Handheld mode.
    • High-definition PMMA lens, with a wide range of perspectives, give players a better flight experience.
    • USB Charger.

    Applications


    It can be used as a display


    1. for drone via 5.8G receiver

    2. unmanned vehicles

    3. night vision and such other products with AV in.


    Product Details:


    Screen Size4.3inch
    MaterialTFT
    Resolution480*272
    FOVField of view: 0/120 degrees (horizontal/vertical)
    Power consumption1.5W in HD mode, 2.3W in 5.8G mode
    Channels48channesl (6 bands *8 channels), support channel auto-searching
    Battery600mAh reachargeable Li-battery
    Size150mmX82mmX145mm
    Weight280g


    1 ----- Power ON/OFF

    2 ----- Power indicator light, turns blue after booting

    3 ----- S, Channels switching

    4 ----- AV, AV input interface

    5 ----- USB MICRO USB charging interface

    6 ----- Charging indicator light, turns red when charging, and turns off when full charged

    7 ----- B, Bands switching

    8 ----- CH, channel auto-searching


    1Power switch● Pull the switch to turn on /off
    2Power indicator● Turns blue after booting
    3S● Click button “S” to switch channels between channel “1-8” when in 5.8G mode.
    ● Used as “+” when in setting menu
    4AV● Switch to AV mode automatically when connect with AV devices, and will back to 5.8G mode when disconnect with AV device
    5USB● For charging (DC 5V power)
    6Charging indicator light●Turns red when charging, turns off when full charged
    7B

    ●Click button “B” to switch bands between “A,B, C, D, E, F” when in 5.8G mode

    ● Used as “-“ when in Setting menu

    8CH

    ●Click button “CH” to bring up Setting menu, and then click again to go to next menu.

    ● Long press to search channel automatically



    Tag: FPV drone goggles, FPV video smart glasses, crossover machines FPV.
