Self-luminous OLED Display Module 0.23" Sony 640 x 400 dots RGB Micro Display Modules HD

Product Description

Product Features

• Small-size, high-definition-type 0.23 nHD+ display dots 640 (RGB) × 400 = 0.77M dots
• High resolution
• High contrast
• Wide color reproduction range
• High-speed response
• Thin type and light weight
• Power-saving function
• Up/down and/or right/left inverse display function
• Orbit supported
• Input interface that supports parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input

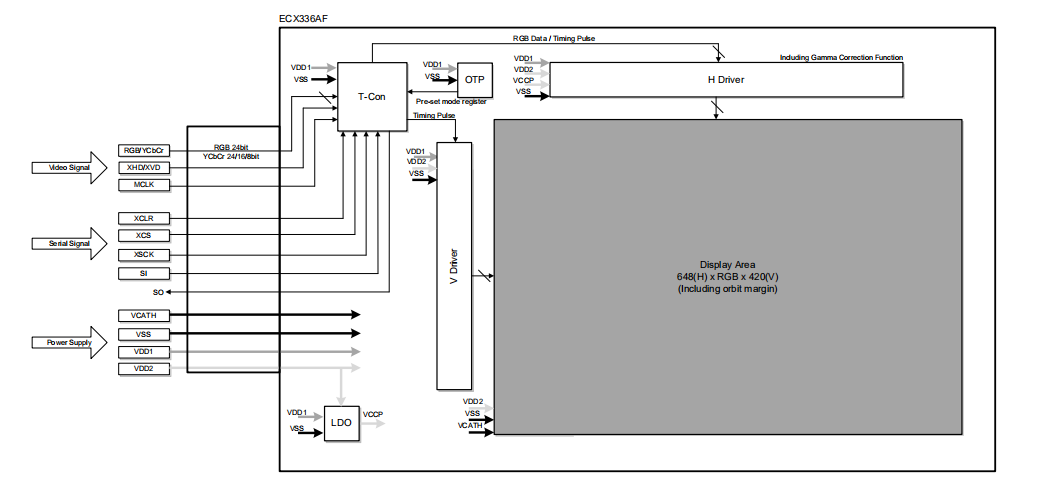

System Block Diagram

Power On Sequence

1. Set XCLR to low and turn on 1.8V power supply to initialize.

2. 1ms after completion of 1.8 V power supply rising, set XCLR to high, then the panel changes to the power-saving mode.

3. After XCLR set to high, turn on 10V power supply.

4. Implement all the register settings and perform PS register off by serial communication to cancel power-saving mode.

Then the panel changes to the normal state.

*Complete turning on of 10V power supply before power saving mode off setting, while the order of turning on of 1.8V and

10V power supply is not restricted.
